Bubble Magus Curve Extreme Protein Skimmer – Curve 3, 5, 7 & 9 Extreme

Take your aquarium's protein skimming to the next level with the Bubble Magus Curve Extreme Protein Skimmer range. Designed for high-performance marine and reef aquariums, the Curve Extreme series combines powerful skimming performance with compact, space-conscious designs and dedicated Rock SP Series pumps.

Available in Curve 3 Extreme, Curve 5 Extreme, Curve 7 Extreme and Curve 9 Extreme, the range provides options for aquariums from approximately 100 litres up to 1500 litres, making it easy to choose a model suited to the size and demands of your aquarium.

Each model is powered by a dedicated Rock SP pump, engineered to provide strong water circulation and air intake for effective protein skimming. The larger models feature progressively more powerful pumps and increased air intake to accommodate larger aquarium systems and higher organic loads.

The Curve Extreme range is designed to remove dissolved organic compounds and waste from aquarium water before they have the opportunity to break down, helping support cleaner, clearer water and a healthier marine aquarium environment.

Whether you're running a smaller reef aquarium or a large marine system, there's a Bubble Magus Curve Extreme skimmer designed to match your setup.

Key Features

• High-performance protein skimmer range for marine and reef aquariums
• Designed to remove dissolved organic waste from aquarium water
• Helps reduce the build-up of organic compounds
• Supports cleaner and clearer aquarium water
• Dedicated Rock SP Series pumps
• Powerful air intake for efficient protein skimming
• Available in four sizes for different aquarium capacities
• Suitable for aquarium systems from approximately 100L to 1500L
• Compact footprint relative to skimming capacity
• Ideal for marine and reef aquarium filtration systems
• Choose from Curve 3, Curve 5, Curve 7 or Curve 9 Extreme

Choose Your Model

Dimensions are listed as L × W × H. Aquarium capacities are manufacturer recommendations and should be considered a guide. Actual suitability will depend on aquarium type, bioload, feeding levels and the desired level of nutrient export.

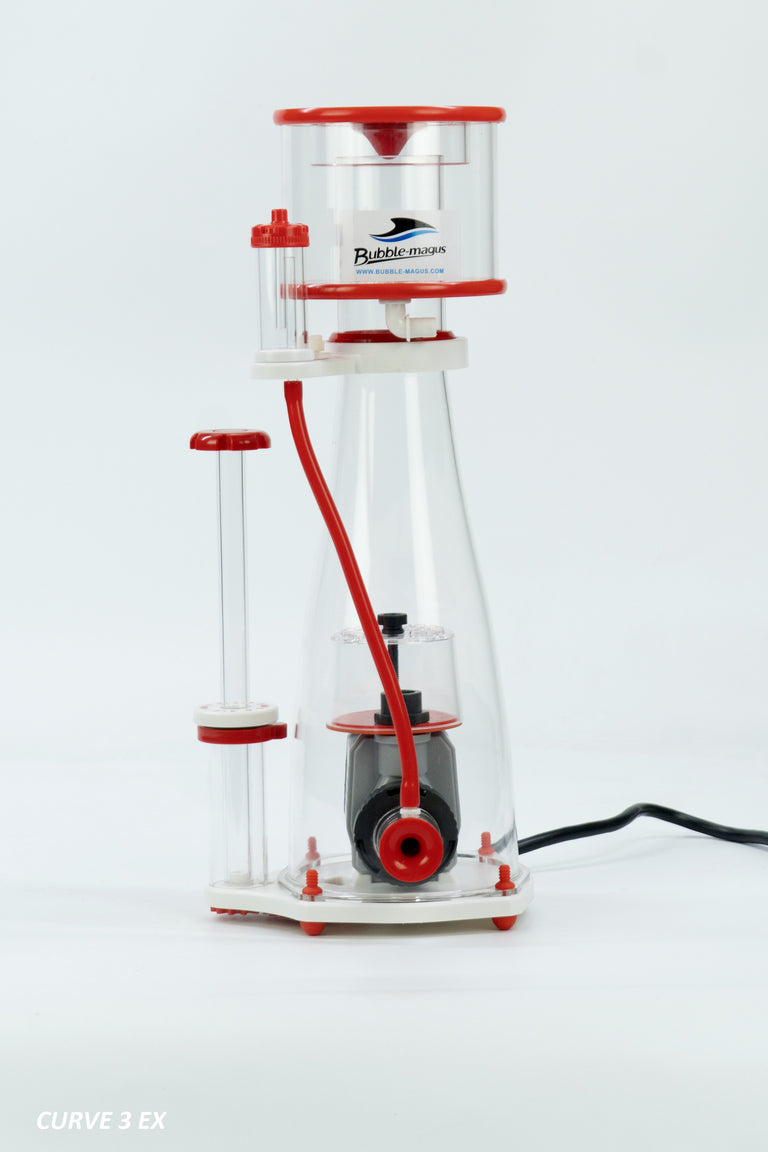

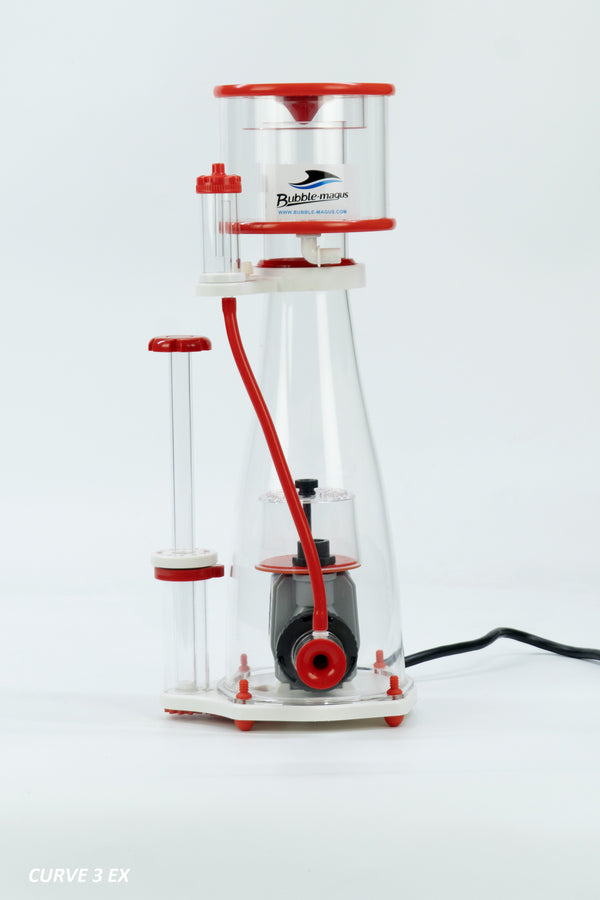

Curve 3 Extreme

The Curve 3 Extreme is designed for marine and reef aquariums between approximately 100 and 300 litres.

Its compact 150 × 170 × 420mm footprint makes it well suited to smaller aquarium systems where sump space is limited.

The Curve 3 Extreme is powered by the Rock SP1.0 Pump, consuming 12W and providing an air intake of 270 LPH.

Specifications:

• Recommended aquarium volume: 100–300L
• Dimensions: 150 × 170 × 420mm
• Pump: Rock SP1.0
• Power: 12W
• Air intake: 270 LPH
• Voltage: 220–240V, 50Hz
• 120V specification: 60Hz, 0.5A

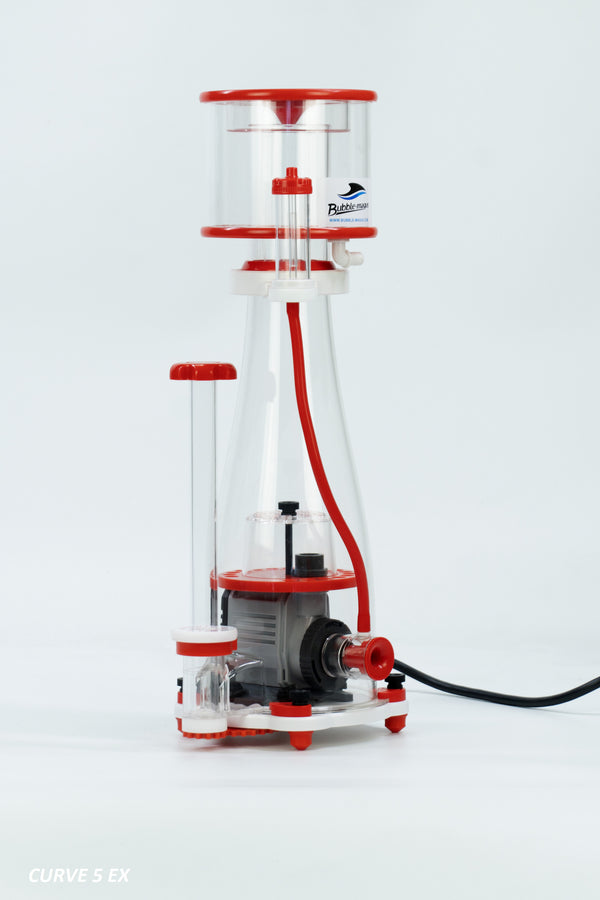

Curve 5 Extreme

The Curve 5 Extreme is designed for marine and reef aquariums between approximately 300 and 500 litres.

With dimensions of 180 × 185 × 470mm, it provides increased skimming capacity while maintaining a relatively compact footprint.

The Curve 5 Extreme uses the Rock SP1.5 Pump, consuming 16W and delivering an air intake of 330 LPH.

Specifications:

• Recommended aquarium volume: 300–500L
• Dimensions: 180 × 185 × 470mm
• Pump: Rock SP1.5
• Power: 16W
• Air intake: 330 LPH
• Voltage: 220–240V, 50Hz
• 120V specification: 60Hz, 0.5A

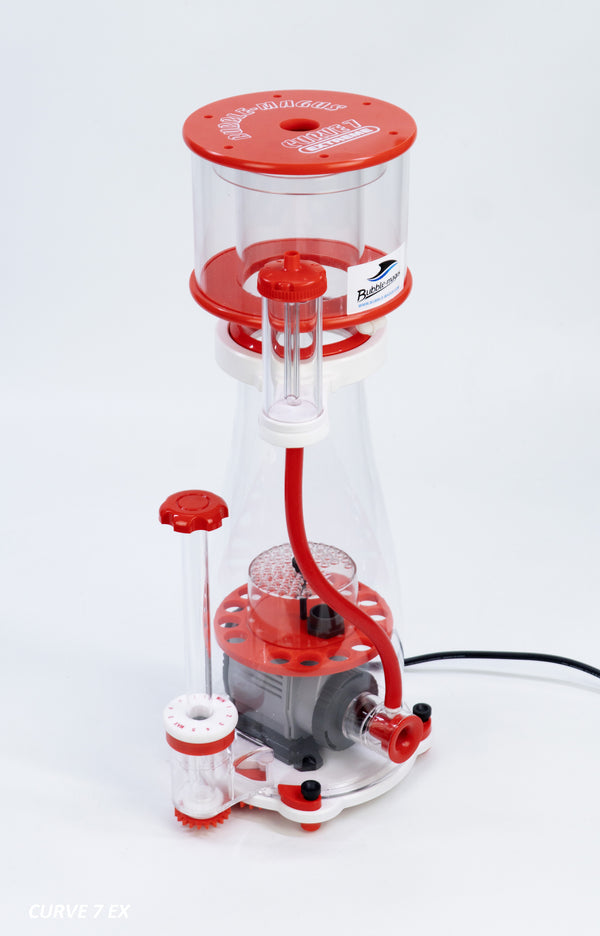

Curve 7 Extreme

The Curve 7 Extreme is designed for larger marine and reef aquariums between approximately 500 and 900 litres.

Its 200 × 235 × 530mm dimensions provide increased capacity for larger systems and higher organic loads.

The Curve 7 Extreme is powered by the Rock SP3.0 Pump, using 20W of power and providing a substantial 660 LPH air intake.

Specifications:

• Recommended aquarium volume: 500–900L
• Dimensions: 200 × 235 × 530mm
• Pump: Rock SP3.0
• Power: 20W
• Air intake: 660 LPH
• Voltage: 220–240V, 50Hz
• 120V specification: 60Hz, 1A

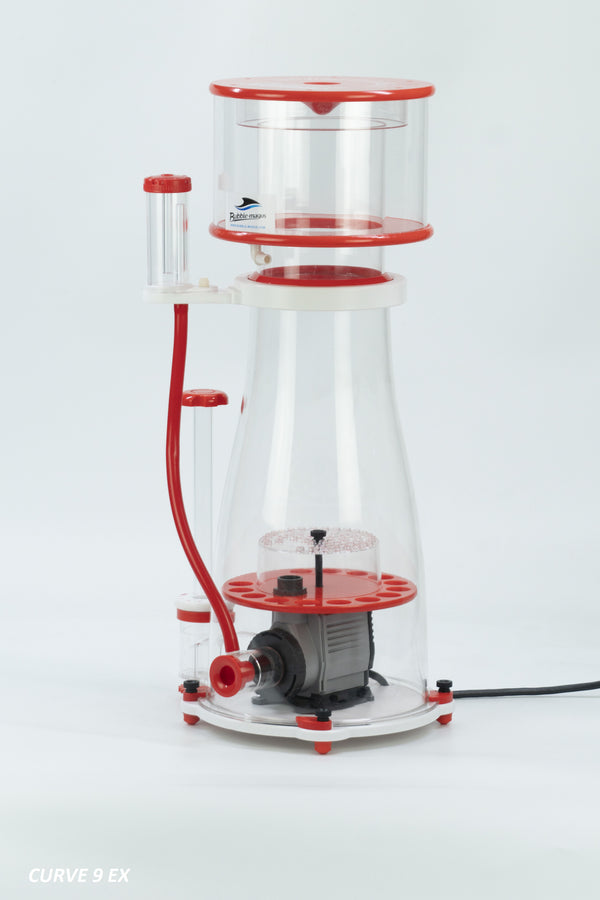

Curve 9 Extreme

The Curve 9 Extreme is the largest model in the range and is designed for large marine and reef aquariums between approximately 900 and 1500 litres.

Measuring 250 × 295 × 610mm, the Curve 9 Extreme provides the highest skimming capacity in the series.

It is powered by the Rock SP4.0 Pump, consuming 25W and delivering an impressive 1000 LPH air intake.

Specifications:

• Recommended aquarium volume: 900–1500L
• Dimensions: 250 × 295 × 610mm
• Pump: Rock SP4.0
• Power: 25W
• Air intake: 1000 LPH
• Voltage: 220–240V, 50Hz
• 120V specification: 60Hz, 0.5A

How Protein Skimming Works

Protein skimming is an important part of marine aquarium filtration.

A protein skimmer uses fine air bubbles to attract and collect dissolved organic compounds from aquarium water. As organic waste binds to the surface of the bubbles, the resulting foam rises into the collection cup, allowing the waste to be removed from the aquarium system.

Removing organic waste before it breaks down can help reduce the accumulation of unwanted nutrients and support better overall water quality.

The Bubble Magus Curve Extreme range combines dedicated Rock SP pumps with high air intake rates to produce the fine bubble-rich environment required for effective protein skimming.

Choose the Right Curve Extreme

Choosing the correct model depends on more than simply matching your aquarium's water volume.

Consider:

• Aquarium volume
• Aquarium type
• Fish stocking levels
• Coral stocking
• Feeding levels
• Overall bioload
• Available sump space
• Desired nutrient export

For lightly stocked systems, a smaller model may provide sufficient skimming capacity. Heavily stocked aquariums with larger fish populations may benefit from choosing a model with greater capacity.

Always consider the manufacturer's recommended aquarium volume alongside the actual bioload of your system.

Installation

The Bubble Magus Curve Extreme protein skimmers are designed for use within a suitable sump-based marine aquarium filtration system.

Before installation, ensure your sump has sufficient space for the selected model and that the skimmer can be positioned correctly according to the manufacturer's recommendations.

Ensure the pump is correctly installed and that the skimmer is operating at the appropriate water depth for optimal performance.

Follow the manufacturer's installation and operating instructions when setting up your skimmer.

Break-In Period

Like most new protein skimmers, the Curve Extreme may require a break-in period after installation.

During the initial setup period, the skimmer may produce inconsistent foam or behave differently as the surfaces inside the skimmer become conditioned.

Allow the skimmer time to settle and adjust the settings gradually rather than making frequent large changes.

Performance should stabilise as the skimmer becomes established within your aquarium system.

Maintenance

Regular maintenance is essential for maintaining consistent protein skimmer performance.

Empty and clean the collection cup regularly to prevent accumulated waste from affecting skimming performance.

Inspect the pump and impeller periodically and remove any debris or deposits that may affect performance.

Clean the skimmer body and air intake components as required.

Salt creep and salt deposits can restrict airflow over time, so regularly check the air intake and airline for blockages.

The frequency of maintenance will depend on aquarium size, bioload and the amount of waste produced by your system.

Important Information

The Bubble Magus Curve Extreme is designed for use in marine and reef aquarium filtration systems.
