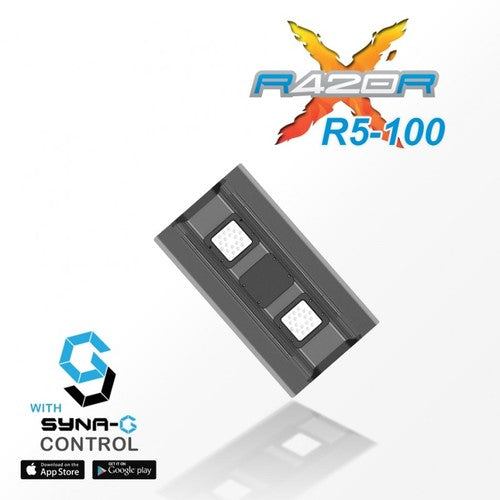

Maxspect Rsx Razor R5-100


Maxspect RSX R5 Razor R5-100

Suitable for nano to 45-75cm Aquariums


Built with a aerodynamic body, the Razor X LED Lighting System is designed to seamlessly merge into your living area with elegance and style. The Razor X is an all-in-one LED system utilizing the latest in LED technology, including Cree XT-E and XP-E high intensity LED chips distributed in 4 different channels, offering impressive performance and versatility.

Built-in Controller

There’s no need to buy an additional controller just to be able to use your aquarium lighting, the Maxspect Razor X has control built-in. The built-in controller integrated in the Razor X features an OLED monitor and a control dial, from which user can easily setup all the functions for the fixture.

Standard or Master/Slave Mode

2 or more Razor X fixtures can be connected together through the Master/Slave mode to control them simultaneously - all Slave fixtures will follow the settings programmed on the Master fixture, saving time and effort on setting up multiple fixtures.

Control with iOS or Android Devices (Optional)

The Razor X can be wirelessly connected to a Maxspect Connect ICV6 controller (sold separately), which allows the Razor X fixture(s) to be controlled by iOS or Android devices through the Syna-G app.

Enhanced Growth and Coloration

The Razor X Lighting system is designed to provide all ranges of color spectrum required by corals and plants to enhance their growth rate, improve their coloration and at the same time giving your aquarium the most aesthetically pleasing combination of colors. The Razor X will meet the requirements of even the most sophisticated group of marine, reef and freshwater hobbyists.

410nm/420nm Super Actinic

The Razor X Lighting system utilizes the 410/420nm Super Actinic LED chips, the spectrum that's crucial for the success of any reef and water plant aquariums as it is required by Chlorophyll A for photosynthesis, where absorption peaks at 412nm.

Built-in Temperature Control System

The Razor X Lighting system deploys an ingenious aerodynamic design which draws cool air from underneath the fixture, through its body which also serves as a large heat sink, to dissipate heat passively. Equipped with fans to regulate fixture temperatures in enclosed environments. The fan(s) will be automatically engage when the temperature is above 55°C/131°F, and disengage when it is below 45°C/113° F.


Suited for tanks 18in - 27.5in wide


Length: 18.4in
Width: 10.2in
Height: 1.25in

Power Specifications Consumption

115w from the wall


Number of Clusters: 2
Total Number of LED: 40

Channel Colors

Channel A: Deep Blue + Cool White
Channel B: Deep Blue + Light Blue
Channel C: Violet + Deep Blue
Channel D: Cyan + Deep Red + Warm White


Channel LED Specs QTY per Cluster R5-100 R5-120 R5-200 R5-300
A Cree Xt-E 450-455nm Royal Blue 2 4 6 8 12
Cree XT-E 6500k Cool White 2 4 6 8 12
B Cree XB-D 450-455nm Royal Blue 4 8 12 16 24
EpiLED 470-475nm Cool Blue 4 8 12 16 24
C EpiLED 390-395nm Violet 1 2 3 4 6
EpiLED 400-405nm Violet 1 2 3 4 6
EpiLEE 410-415nm Violet 1 2 3 4 6
EpiLED 440-445nm Deep Blue 1 2 3 4 6
D EpiLED 500-505nm Cyan 1 2 3 4 6
EpiLED 660-665nm Deep Red 1 2 3 4
