Flow Comes Full Circle
Introducing the all new Orbit pump.
Driving Cross-Flow Technology.
Included Pump Modes
Constant Speed
A constant stream of flow at the intensity of your choosing.
Pulse
Consisting of uniform high and low levels.
Random
Simulates a high-energy reef environment.
Reverse
Reverse the flow.
Ecosystem of Flow
Orbit pumps produce a unique type of flow. Circling the aquarium with water movement- like the water that moves within the ocean. Orbit provides a cross-flow current that simulates the tidal flow experienced on ocean reefs that is an excellent mechanism for lifting excess nutrients from the bottom of the aquarium for removal by filtration.
Like ocean currents, it is not just one type of flow that makes the reef thrive, but really make your aquarium thrive with flows of all types. When combined with the directional and random flow patterns of our Nero pump line a true recreation of ocean flow can be achieved- powerful, directional, systematic, and chaotic.
Simple Built-in Control
All AI devices include smart control standard. Choose from the myAI® or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.
Forward and Reverse.
Orbit has the ability to operate in both forward and reverse modes.
- Augment custom flow patterns and programs with reverse operation.
- Use the reverse functionality to create turbulent flow, which helps remove detritus.
- Multiple pumps can be run in opposite directions to augment gyre or circular flow.
Technical Specifications

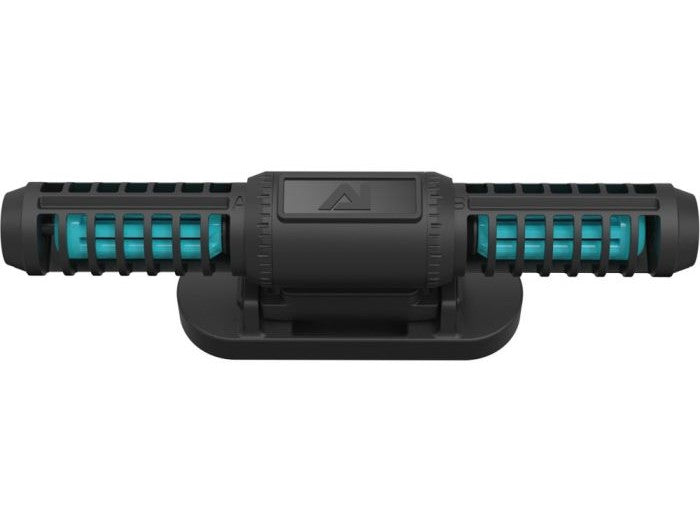

Orbit® 2NEW
| Dimensions | |
|---|---|
| Width | 8.78 in. (223 mm) |
| Height | 2.83 in. (71.9 mm) |
| Depth | 1.5 in. (38.1 mm) |
| Specifications | |
|---|---|
| Maximum Glass Thickness | 0.59 in. (15 mm) |
| Recommended Tank Size | ≈20-88+ gallons |
| Power Consumption | Variable, 25W max |
| Input | 100–240VAC, 50-60Hz, 2A |
| What’s in the Box |
|---|
| AI Orbit™ 2 Pump with Integrated Driver |
| Mounting Magnet |
| Power Adapter with Universal Plug Adapter Set |
| Quick Start Guide |

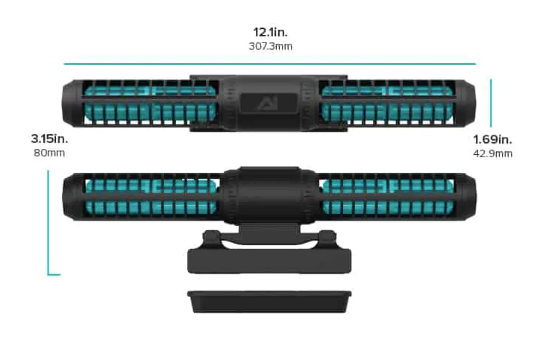

Orbit® 4NEW
| Dimensions | |
|---|---|
| Width | 12.1 in. (307.3 mm) |
| Height | 3.15 in. (80 mm) |
| Depth | 1.69 in. (42.9 mm) |
| Specifications | |
|---|---|
| Maximum Glass Thickness | 0.79 in. (20 mm) |
| Recommended Tank Size | ≈20-120+ gallons |
| Power Consumption | Variable, 45W max |
| Input | 100–240VAC, 50-60Hz, 2A |
| What’s in the Box |
|---|
| AI Orbit™ 4 Pump with Integrated Driver |
| Mounting Magnet |
| Power Adapter with Universal Plug Adapter Set |
| Quick Start Guide |
