Red Sea REEFER G3 Series – Specifications Comparison (S-550 to S-1000)
| Feature | REEFER MAX S-550 G3 | REEFER MAX S-700 G3 | REEFER MAX S-850 G3 | REEFER MAX S-1000 G3 |
|---|---|---|---|---|
| Total system water volume | 549 L | 699 L | 850 L | 1000 L |
| Display tank water volume | 448 L | 564 L | 680 L | 795 L |
| In-cabinet sump water volume | 101 L | 135 L | 170 L | 205 L |
| Display tank length | 120 cm | 150 cm | 180 cm | 210 cm |
| Display tank width | 68 cm | 68 cm | 68 cm | 68 cm |
| Display tank height (excluding light unit) | 65 cm | 65 cm | 65 cm | 65 cm |
| Total system height (excluding light unit) | 153 cm | 153 cm | 153 cm | 153 cm |
| Ultra-clear front glass | 19 mm | 19 mm | 19 mm | 19 mm |
| Ultra-clear side glass | 19 mm | 19 mm | 19 mm | 19 mm |
| Bottom glass | 19 mm | 19 mm | 19 mm | 19 mm |
| Back glass thickness | 19 mm | 19 mm | 19 mm | 19 mm |
| Rim type | Euro brace + bottom brace | Euro brace + bottom brace | Euro brace + bottom brace | Euro brace + bottom brace |
| ReefLED advanced light system | 2 × ReefLED G2 170 (included) | 3 × ReefLED G2 170 (included) | 3 × ReefLED G2 170 (included) | 4 × ReefLED G2 170 (included) |
| Water circulation | 2 × ReefWave 45 (15,000 lph) linear wave pumps (included) | 2 × ReefWave 45 (15,000 lph) linear wave pumps (included) | 2 × ReefWave 45 (15,000 lph) linear wave pumps (included) | 2 × ReefWave 45 (15,000 lph) linear wave pumps (included) |
| Main system pump | 1 × ReefRun G2 8000 (4100–8300 lph) – included | 1 × ReefRun G2 8000 (4100–8300 lph) – included | 1 × ReefRun G2 12000 (5000–12000 lph) – included | 1 × ReefRun G2 12000 (5000–12000 lph) – included |
| Hydrodynamic piping with gate valve | Included | Included | Included | Included |
| Protein skimmer | RSK DC 600 (1,500 lph air / 750 lph water) – included | RSK DC 900 (2,000 lph air / 900 lph water) – included | RSK DC 900 (2,000 lph air / 900 lph water) – included | RSK DC 900 (2,000 lph air / 900 lph water) – included |
| ReefMat / NanoMat | ReefMat 1200 included | ReefMat 1200 included | ReefMat 1200 included | ReefMat 1200 included |
| ReefATO+ kit included | Yes | Yes | Yes | Yes |
| ReefATO+ ready | ReefATO+ Ready (included) | ReefATO+ Ready (included) | ReefATO+ Ready (included) | ReefATO+ Ready (included) |
| Slide-out control panel | Slide-out control panel 60 included | Slide-out control panel 60 included | Slide-out control panel 60 included | Slide-out control panel 60 included |

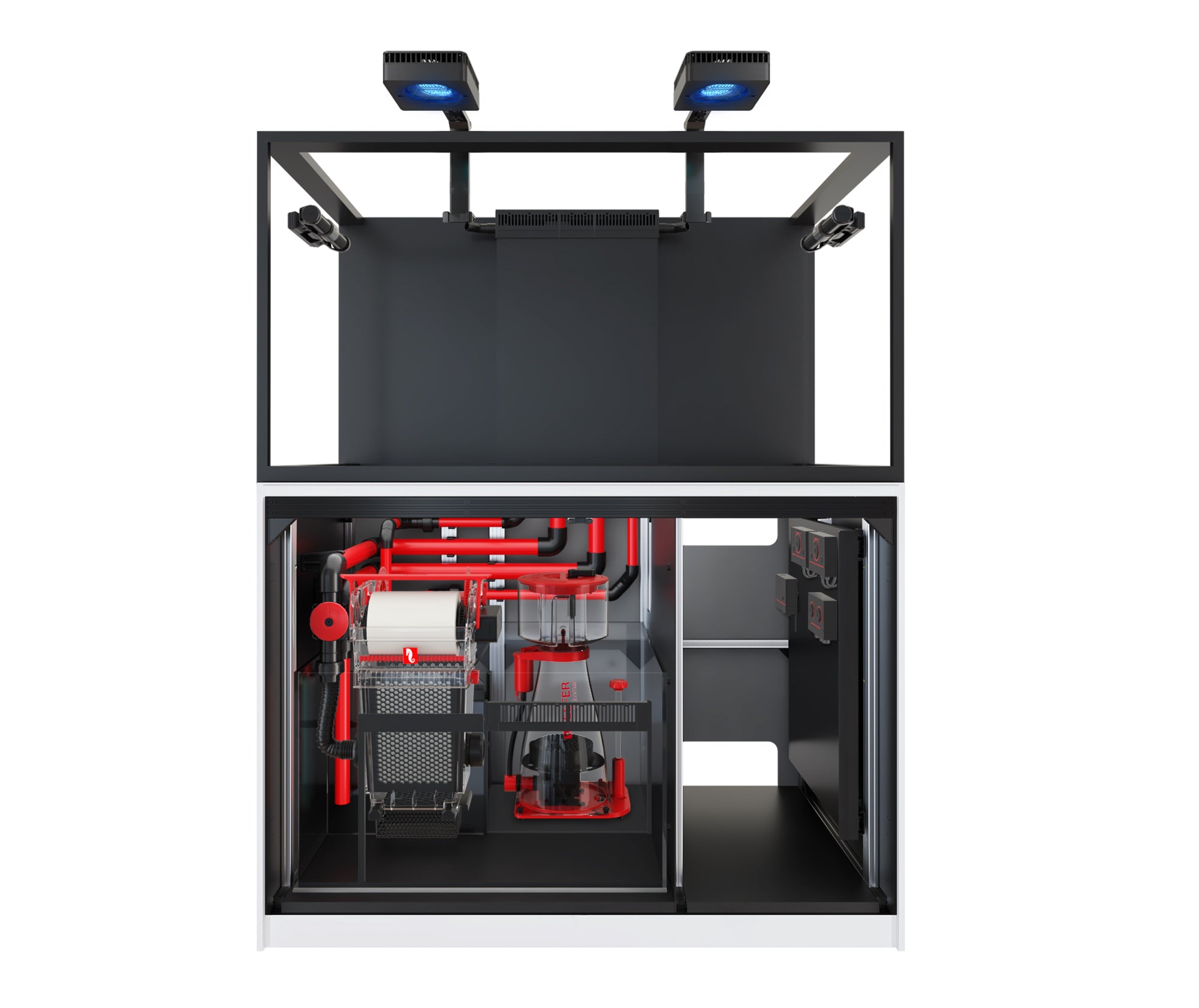

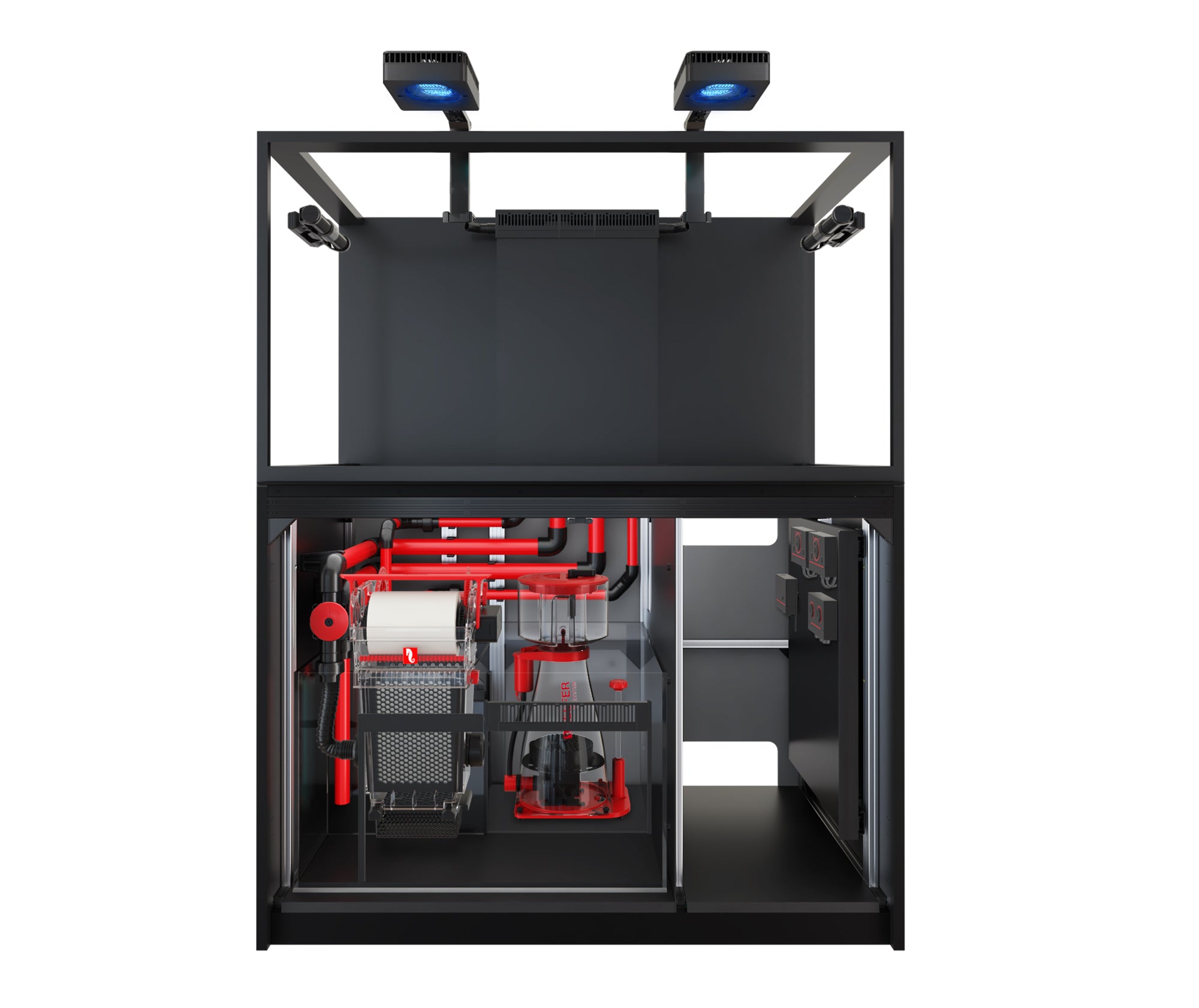

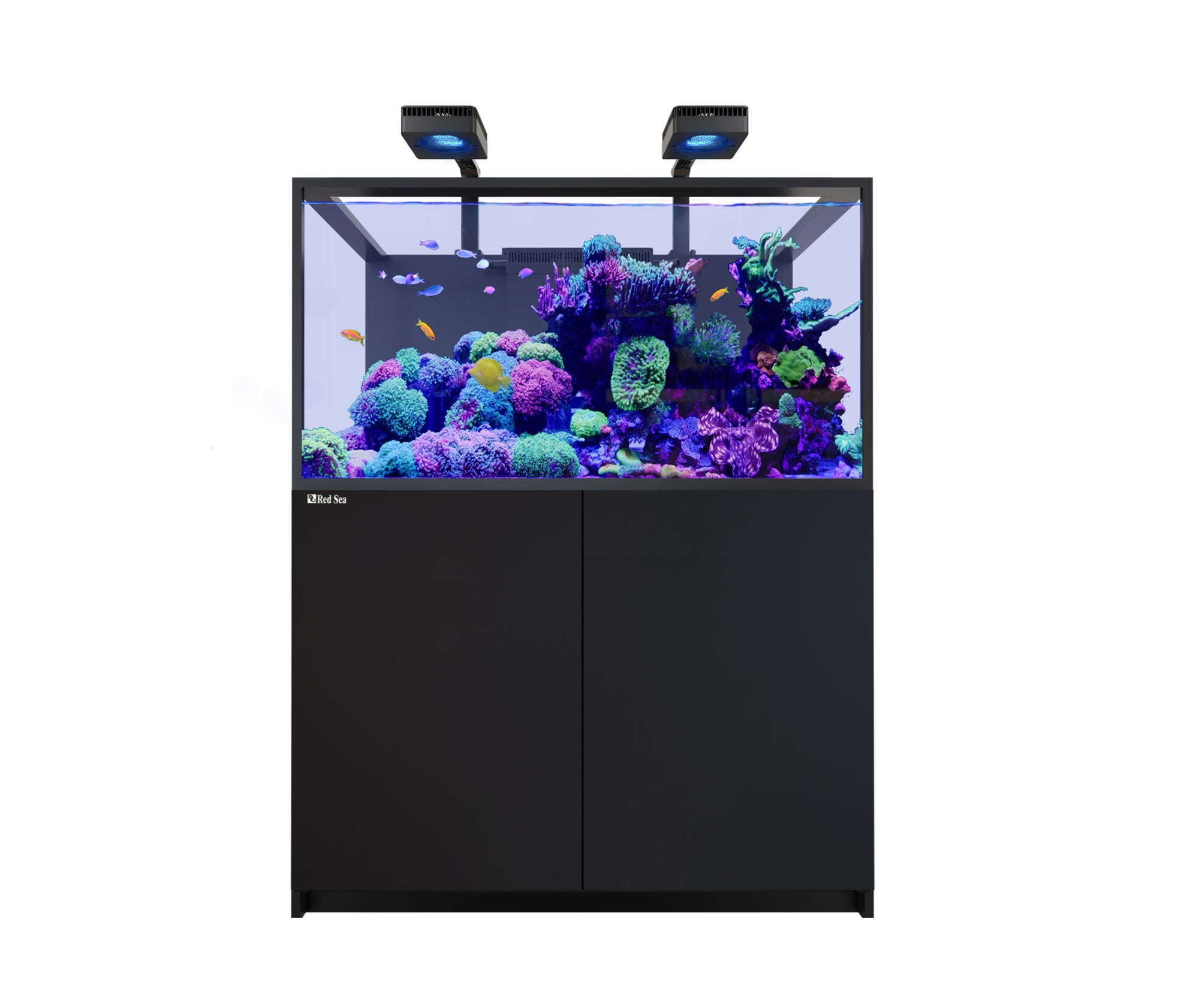

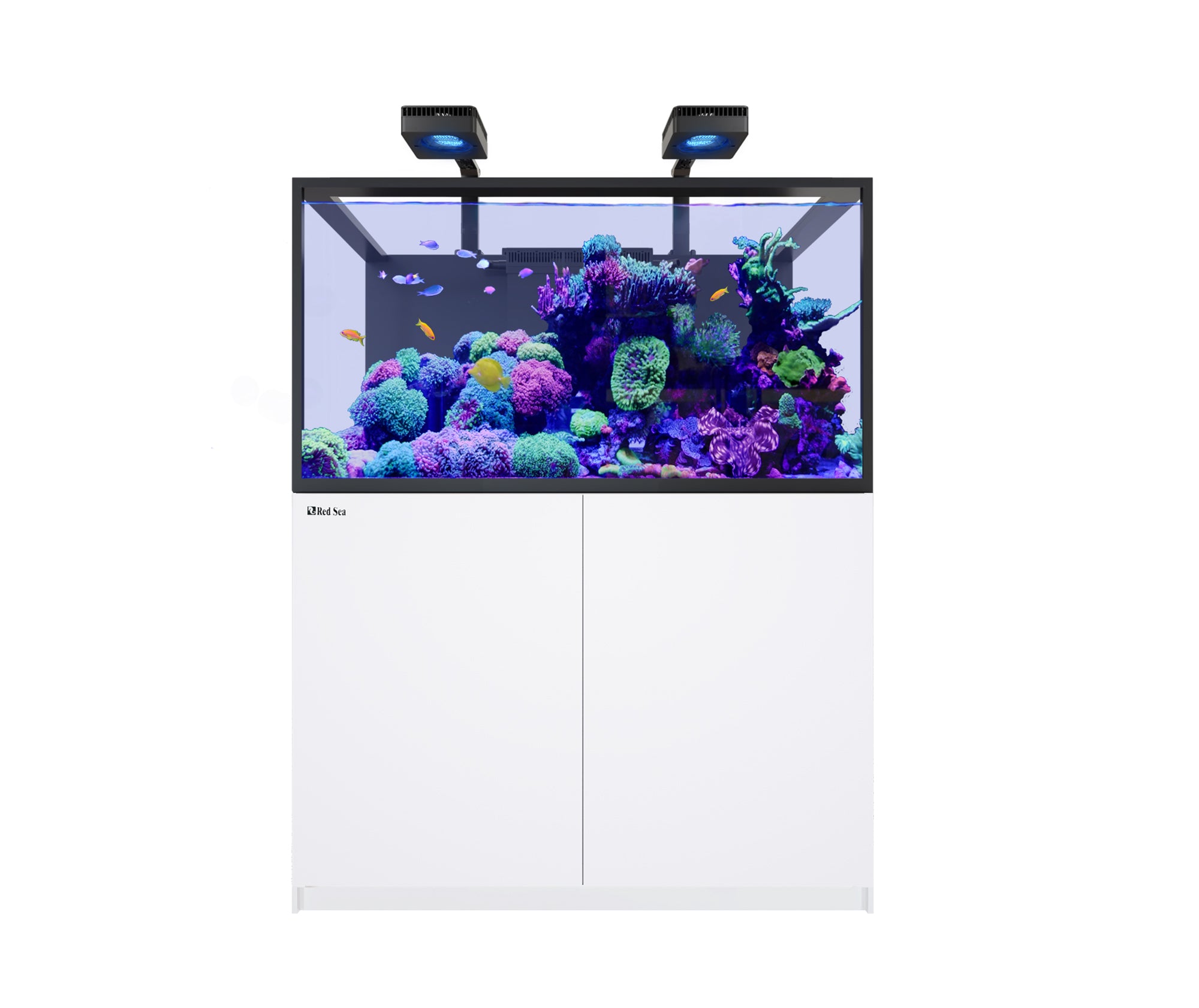

Red Sea REEFER G3 S-550 - MAX
