D-D H2Ocean Slimline Designer Bracket 60cm Black
Add some style to your aquarium and securely mount your AI lighting.

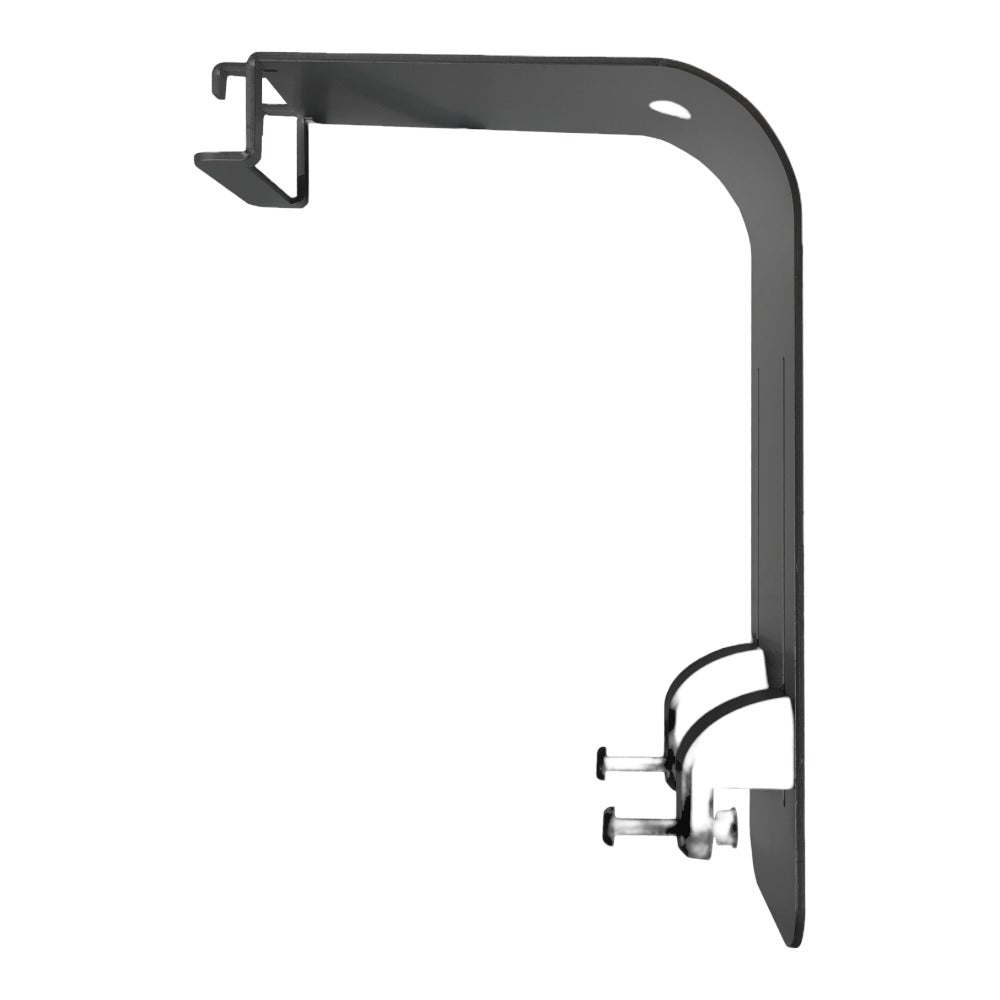

The new D-D Tank mount, a sleek and elegant unibody mount formed from a single heavy gauge piece of Aluminium.
Available in Black or Silver powder coated finish
Specifications:
- Simple to Install
- Elegant design
- Height adjustable
- Twin mounting points for secure fitting
- Lightweight Aluminium
- Available in three sizes to suit 50,60 and 75cm wide aquariums
- Suitable for Hydra (thin heatsink), Vega , Hydra 52/26 and Hydra 52/26HD
To fit:

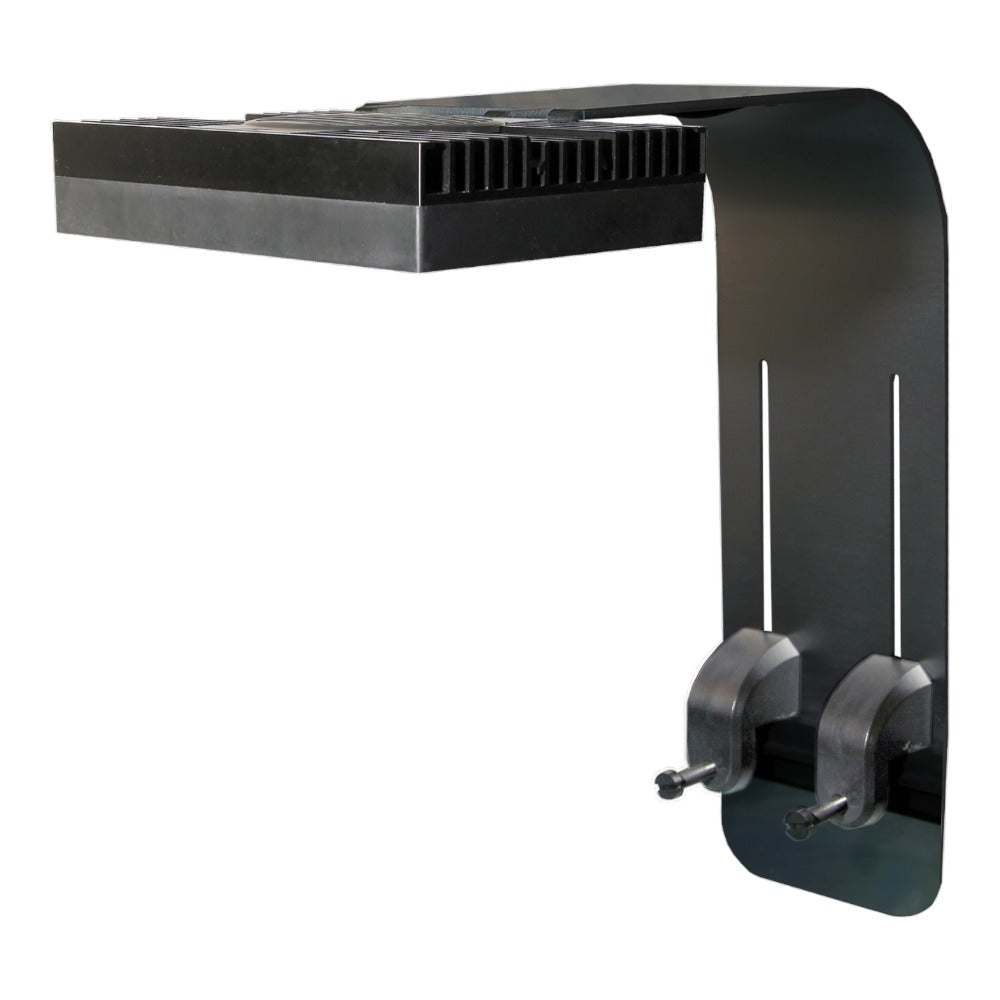

Remove the grill from your AI light by gently pulling it up from the centre
Slide the light onto the bracket with the status light facing the mount ( be careful not to damage the crystal indicator of the HD line of lights when installing)
When in place refit the grill onto the light
Assemble the mounting clamps and tighten the black hex screws with the included hex key to attach the clamps to the bracket.
Screw the long plastic black clamp bolt into the clamp and thread the included black plastic nut onto the thread of the bolt with the flaired edge facing the aquarium glass.
Sit the mount on the aquarium and clamp the brackets in place , to adjust the light height loosen the black nex bolts on the back of the mounting clamps and raise or lower the mount to suit.
The mount clamps are very secure so adjustment is best done with the light not on the clamp and the clamp away from the aquarium.
Stick the included cable guides onto the mount, one to guide the cable as it leaves the light and the other on the back of the mount to guide the cable as it runs down the back of the mount.
