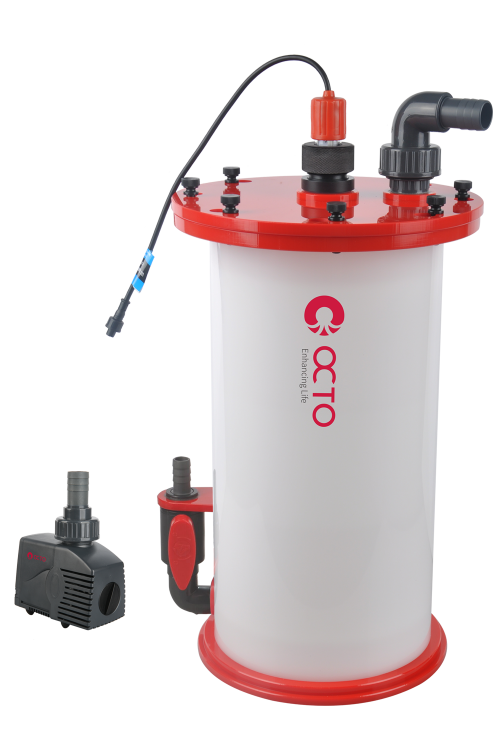

Octo Lr-200 Light Reactor

By OCTO
$759.00

Features & Benefits

  • Circulation Pump Included
  • Adjustable light intensity
  • IP67 Certified LEDs containment
  • Strainer Flip Stand – for easy maintenance
  • High-Quality Hand Made acrylic construction
  • Removable 3 tiers strainer container for easy harvesting
  • Perfectly balance of light spectrum for optimal Chaetomorpha growth
  • Unique Triangular LEDs Panels placement for a balance of 360 degrees coverage

OCTO LR Reactors are made with the most robust material to ensure that they adhere above the industry standards of keeping in shape and watertight. With our unique Triangular LEDs placement eradicating blind spots couple with optimum spectrum guarantees a quicker growth rate.

Harvest timeline can be easily controlled via the adjustable light intensifier should you wish to slow down the growth rate. Bundled with a 3 Tiers Strainer Basket to make harvesting a breeze.

Available in 2 models – LR-150, LR-200

Warranty (against manufacturing defect):
2 years* – pump motor only

Technical Data

Lights Reactor

Product Item No. Wet/Dry Diameter Footprint Height Input Fittings
Barb Fittings PVC Pipe
mm inch mm inch mm inch mm inch mm inch
LR-150 130309 Both 150 5.9 230 205 9.1 8.1 510 20.1 17.0  5/8 20.0  1/2
LR-200 130310 Both 200 7.9 285 265 11.2 10.4 510 20.1 20.0  3/4 20.0  1/2



Product Item No. Output Fittings Tank Volume Power(w) Pump
Barb Fittings PVC Pipe
mm inch mm inch L US Gal LED Pump
LR-150 130309 20.0  3/4 20.0  1/2 200-600 52-158 18 15 AQ-1200
LR-200 130310 20.0  1/2 25.0  3/4 500-1000 132-264 18 45 AQ-2000
25.0 1

Circulation Pump

Product Model No. Wet/Dry Power Max Head Height Maximum Flow Rate
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
W W m Ft. m Ft. LPH GPH LPH GPH
LR-150 AQ-1200 Both 10 15 1.1 3.6 1.3 4.3 1300 343 1287 340
LR-200 AQ-2000 Both 42 45 2.0 6.5 2.1 6.9 2000 528 2203 582

Electrical or other Certification
Pumps (AQ) – CE & PSE certified
Lights – CE certified

What's included

LR-150 LR-200
Article Code Items Model No. Qty Model No. Qty
1 Lights Holder 1 1
1.1 Holder Cover 2020100003 1 2020100003 1
1.2 O ring (22*5) 1050100024 1 1050100024 1
1.3 Holder 2020200020 1 2020200020 1
1.4 O ring (35*3) 1050100035 1 1050100035 1
2 Reactor Cover 1 1
3 Strainer 1 1
3.1 Screw (M5*15 ) 1042500001 9 1042500001 9
3.2 Holder 2010100152 9 2010100152 9
4 O ring 1050100083 1 1050100087 1
5 Screw (M8*25) 1042500005 6 1042500005 8
6 Chamber 1 1
7 Threaded Nozzle 2020300009 1 2030200004 1
8 Pump (AQ-1200) 110203 1 110206 1
9 Threaded Nozzle 2030200004 1 4999900003 1
10 Outlet Nozzle 4030301002 1 1
11 O ring 1050100089 1 1050100090 1
12 Lights 1110400005 1 1110400005 1
13 Lights Adjustable Switch 1110400006 1 1110400006 1
14 Power Adapter DC12V / 2A 1 DC12V / 2A 1
